Description

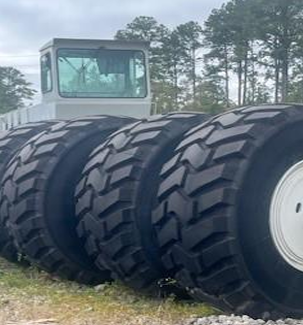

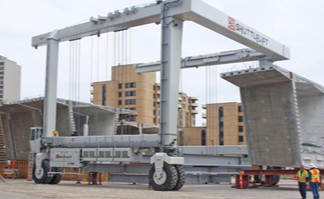

The Shuttlelift SL 300II Mobile Gantry Crane represents a robust solution for heavy lifting operations, offering a rated lifting capacity of 600,000 lbs (272,160 kg). Built with a closed loop hydrostatic drive system, this machine delivers reliable performance across demanding industrial applications. The gantry features a substantial 154 HP engine operating at 2200 RPM, driving six independent hydraulic hoist controls that provide precise load handling. With standard travel speeds of 60 ft/min and an inside clear width of 32'0" (9.75 m), the unit accommodates large-scale lifting requirements while maintaining operational efficiency. Construction quality is evident throughout the design, with a shipping weight of 259,000 lbs and an inside clear height of 34'0". The machine is finished in orange and grey using a two-part epoxy primer beneath two-part urethane paint, providing durable protection in challenging environments. The tyre configuration comprises eight 24.00-49 tyres at 145 PSI, supported by a wheelbase of 41'6" and two-wheel steer geometry achieving a 90-degree turning angle with an outside turning radius of 64'0". Standard equipment includes quick connect hydraulic test ports, a full flow filtration system, four travel warning alarms with strobe lights, a low-mounted grooved hoist drum, and emergency stops at each wheel frame. A comprehensive range of optional equipment allows for configuration to specific operational needs. Available upgrades include increased gradeability up to 6%, all-wheel electronic steering, an enclosed cab with heating, defrosting, and air conditioning, wireless remote control capability, a two-speed hoist, sound suppression kits, and a cold start package for operation in low temperatures. The machine ships disassembled, facilitating transport and enabling assembly at the point of installation. Safety features include a fire extinguisher in the cab and powder-coated carbon steel hydraulic tubing throughout the system.

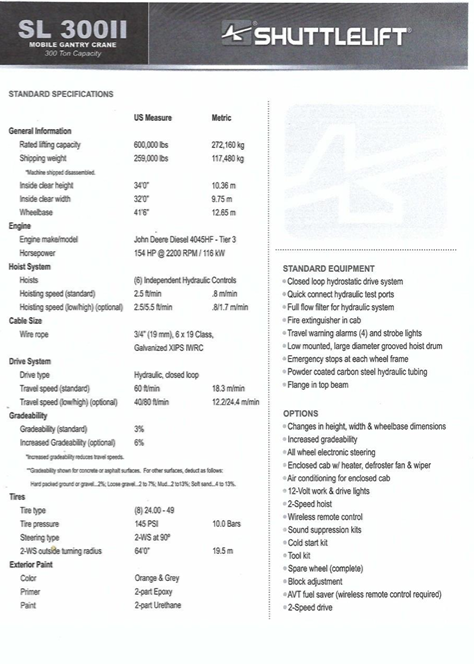

Specifications
